Hurricane Proof Aluminum Alloy Folding Door Tempered Glass

Basic Info

Model No.: 68 Series Folding Door

Brand: Ya Lian

Warranty Service: More Than 5 Years

Open Method: Foldable, Folding

Door Type: Glass

After-sales Service: Online Technical Support

Engineering Solution Capability: Total Solution For Projects

Application Scenario: Hotel, Apartment, Office Building, Hospital, Mall, Courtyard, Exterior

Design Style: Modern

Place Of Origin: China

Use Place: Commercial

Surface Processing: Finished

Variety: Accordion Doors

Door Material: Aluminum Alloy

Profile Color: Grey/Black/Customized

Glass Type: Single\double\tempering\coating\low-e

Hardware: Kinlong/3H

Size: Customer Demand

Packing: Protective Flim With Foam And Corner Protect

Glass Thickness: 5mm+15A+5mm double glazing tempered glass

Product Name: 68 Series Aluminum Folding Door

Profile Thickness: 1.6mm/2.0mm

Delivery Time: 10-31Days

MOQ: 6 Square Meters

Additional Info

Packaging: 4-Layers Protection Packaging

Productivity: 500000 square meters/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: Annual export of 500000 square meters of windows and doors

Certificate: ISO9001\CE\AS2047

HS Code: 7610100000

Port: Nansha Port,Shekou Port,Yantian Port

Product Description

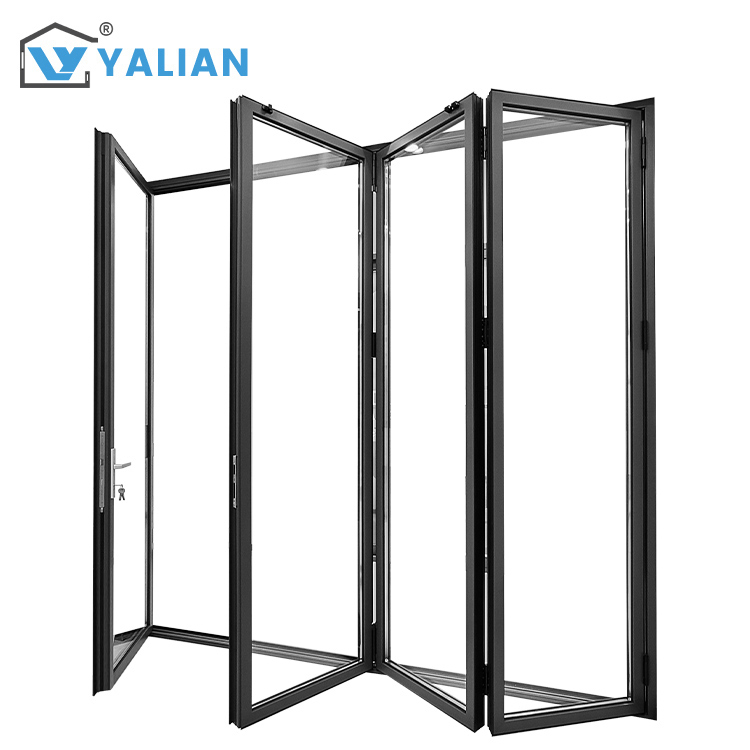

68 Series Folding Door

The 68 series aluminum alloy folding door is a modern foldable Glass door and window system that uses multi-linked folding plates to achieve large openings, high transparency, and flexible space separation. It uses a standard profile width of 68mm and supports 2 to 8 or more combined folding. After folding, it can be completely stacked to maximize the visual and ventilation effects of indoor and outdoor integration. This series has a smooth and silent folding pulley system, excellent airtight and watertight performance, and anti-pinch, multi-point linkage lock and other safety designs. It is suitable for villa balconies, courtyards, commercial exhibition halls, cafes, conference room partitions and other scenes, taking into account both artistic beauty and functional practicality. Supplier network.

Main features :

1. Standard 68mm aluminum alloy profile.Using 6063-T5 aviation-grade aluminum alloy profile, the wall thickness can be selected as 1.4mm/1.6mm/2.0mm, with high strength, not easy to deform, and corrosion-resistant performance. The surface provides a variety of processes such as powder spraying, electrophoresis, fluorocarbon spraying and wood grain transfer. The color and texture can be customized according to the architectural style.

2. Multi-leaf linkage folding structure.Supports 2 to 8 or more leaf combinations, and can be flexibly configured with single-side or double-side folding layouts as required, achieving a permeability rate of more than 90%. The upper and lower load-bearing soft connection design strengthens the door leaf load-bearing capacity and prevents derailment, meeting the needs of large openings and heavy doors.

3. High-performance glass system.Optional single-layer tempered glass (6-10mm), double-layer insulating glass (5+12A+5mm or 6+18A+6mm) and special glass such as laminated, Low-E, sound insulation, and bulletproof; large-area glass design improves lighting and vision, while meeting multiple performance requirements such as heat insulation, sound insulation, and safety.

4. Smooth and silent folding pulleys.Equipped with stainless steel high-load-bearing pulleys and precision slide rails, upper load-bearing or lower load-bearing systems are optional; anti-jump rails and buffer damping devices ensure smooth and smooth operation without jamming or noise during folding.

5. Excellent sealing and energy saving.Three or four EPDM sealing strips are designed to achieve excellent air tightness, water tightness, sound insulation and heat insulation effects; after adapting to Low-E glass, the overall U value is significantly reduced, meeting the green building energy-saving standards.

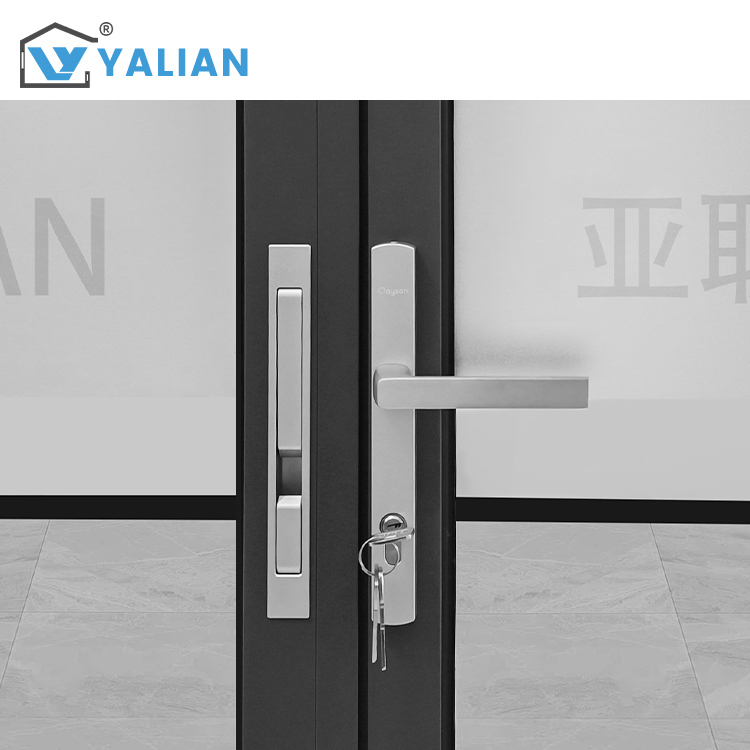

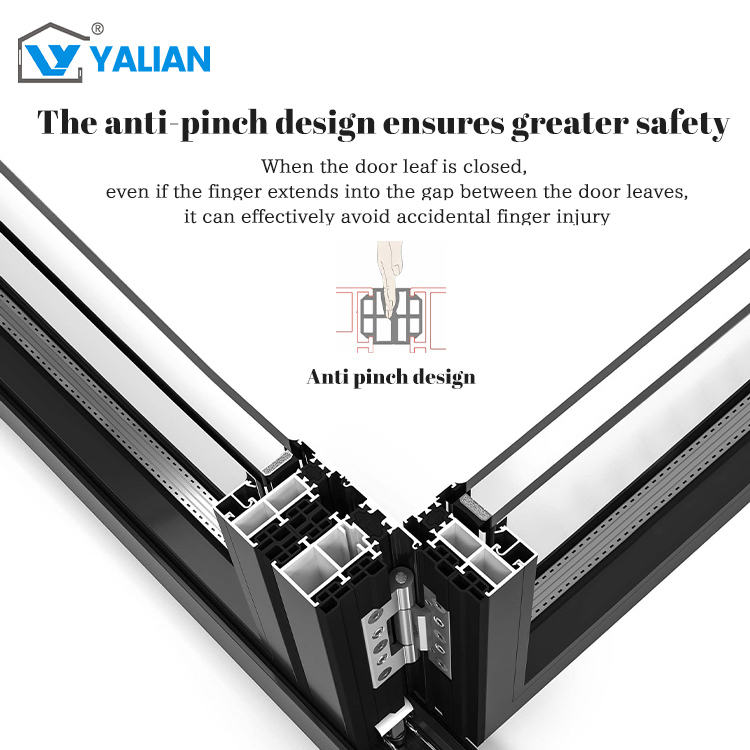

6. Safety anti-pinch and hardware accessories.Equipped with multi-point linkage locks, anti-pinch hinges and child safety locks to improve safety; hardware can be selected from high-end domestic and foreign brands to ensure durability, corrosion resistance and excellent anti-theft performance.

In Summary.The 68 series aluminum alloy folding patio door combines standardized profiles, flexible folding, multifunctional glass, smooth folding system and comprehensive sealing and safety design. It performs excellently in saving space, improving lighting, improving ventilation and separating privacy. It is the best choice for modern residential and commercial spaces that pursue transparency and wide views.

Product Categories : Aluminum Door > Folding Door
